KOR001
Where to Buy

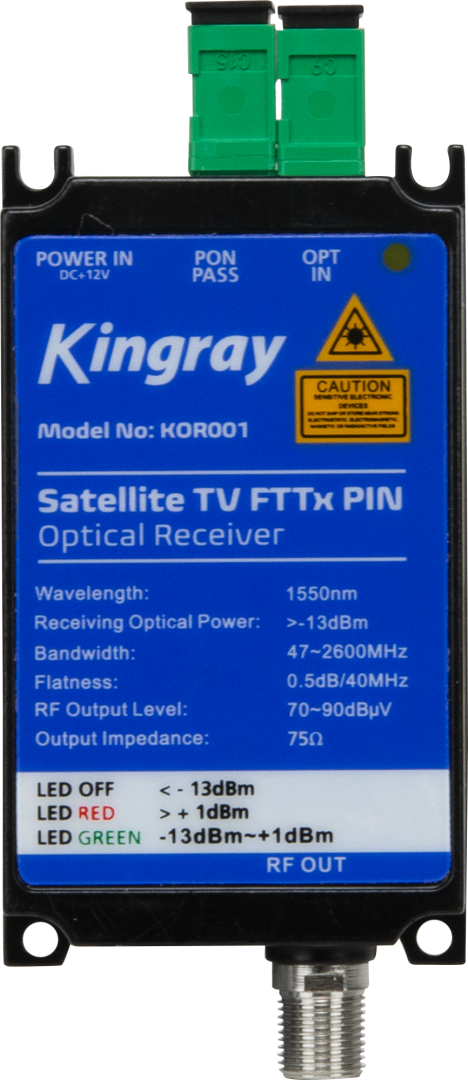

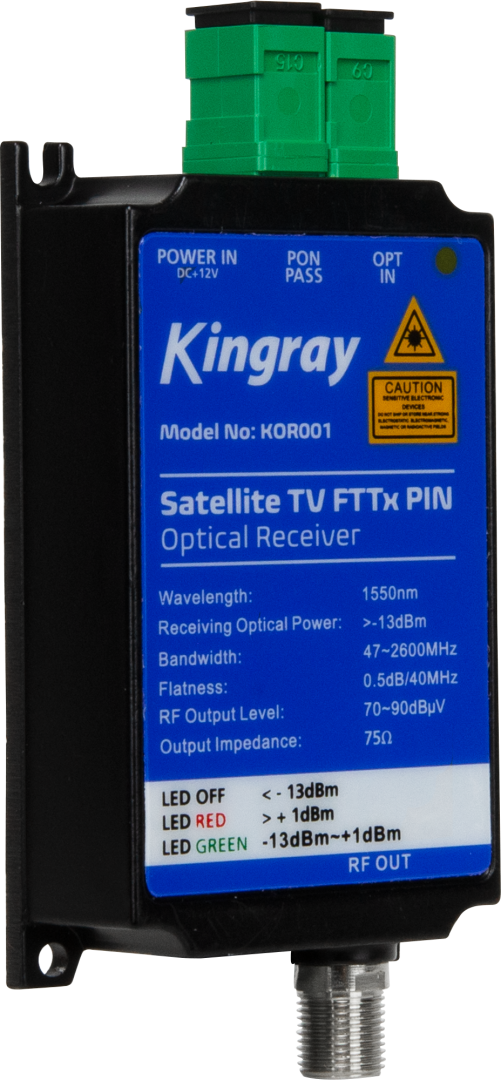

The KOR001 Optical Receiver uses a high-sensitivity PIN detector. It can receive digital signals within the frequency range of 47~2600MHz on a single fibre and is compatible with any FTTx PON system to achieve a triple-network combination between Digital TV (DVB-C, DVB-T), Satellite TV (DVB-S) and Internet.

It has a built-in WDM to separate wavelengths of 1550nm (CATV) and 1310/1490nm (data).

The optical receiver is powered by a Kingray PSK12S power supply (sold separately). Foxtel Approved.

Product Details

Key Features

  • Frequency Range 47~2600 MHz
  • Built-in WDM to separate wavelengths of 1550nm (CATV) and 1310/1490nm (data)
  • Receiving Sensitivity Range: -13dBm to +1dBm
  • RF Output Level: Typically 70~90dB
  • High linearity, suitable for Digital TV and SAT-IF application
  • Digital TV (DVB-C, DVB-T) and Satellite TV (DVB-S) signal can be received via a single fibre at the same time
  • LED Indicator
  • Compact in design, wall mountable and light weight
  • Optical Connector: SC/APC

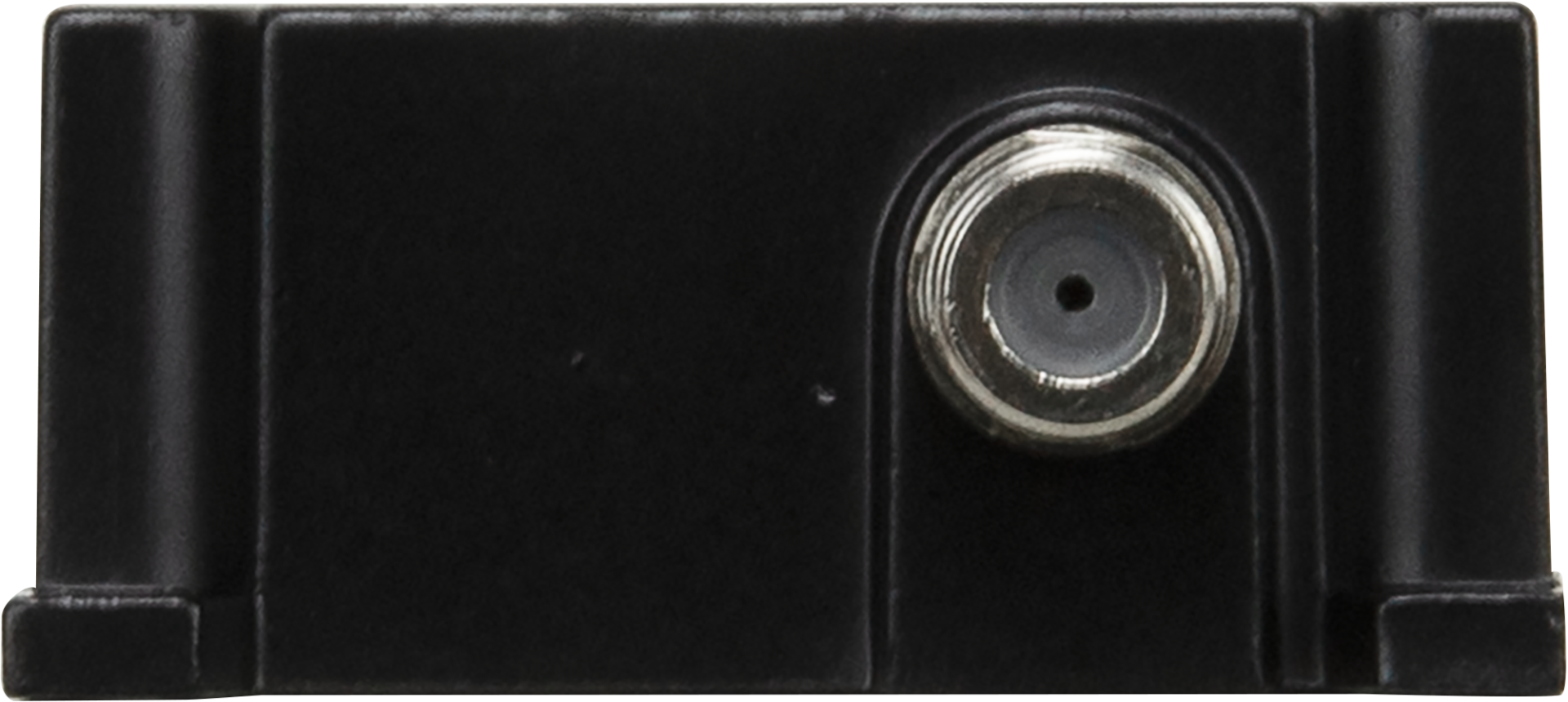

  • RF Connector: F-Female

In the box

  • KOR001
